All Geared Lathe

Preet Lathe Udyog’s utmost expertise is laid on to craft the most effective lathe called All Geared Lathe, & is aimed to be the easiest machine for the craftsmanship. All Geared Lathe Machine India Apparatuses are one of the finest machines which can take up heavy load & are offered with various features such as Digital Readouts, Single Handle Controls and feed and thread safety knits that make it a breeze to function. All Geared Lathe Machine are well manufactured & Preet’s remarkable machines are offered with superb features and Tight Tolerances at Speculative prices. Machines are provided with Turcite Lining (optional) & Electric Hand Drive – Siemens/L&T Make which helps an operator to work with ease without controlling the machine from the Headstock Panel.

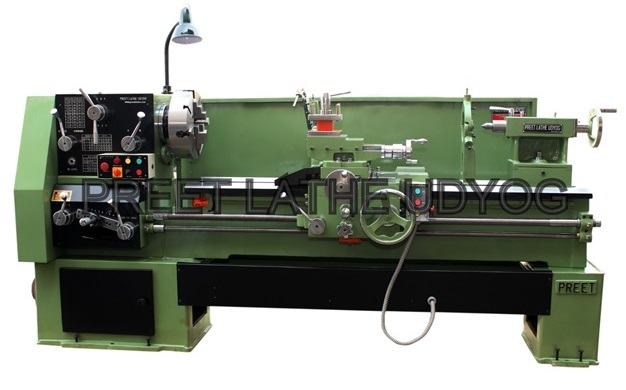

All Geared Lathe




Included Accessories:
  Dog Chuck Plate
  True Chuck Plate
  4 Way Tool Post
  Steady Rest
  Follow Rest
  Dead Center
Extra / Optional Accessories
  Dog Chuck   True Chuck
  Electric Control Panel   Rapid Motorized Saddle
  Main Motor  Coolant Pump With Tank
  Taper Turning Attachment  Machine Light
  Splash Guard   Foot Operated Brake
  Tool Post Grinding Attachment   Key Way Cutting Attachment
  Turcite Lining Fitting   Digital ReadOuts - DRO
  Flame Hardened Bed  Rear Tool Post

  Description
Units
A
B
C
D
E
  Distance Between Centers
mm
1000 TO 3000
1000 TO 3000
2000 TO 4000
2000 TO 4000
2000 TO 4000
  Bed Width
mm
350 TO 375
430
450
500
600
  Center Height
mm
300 TO 330
360
380
450
500
  Swing Over Bed
mm
550
720
760
900
1000
  Swing Over Cross Saddle
mm
350
370
400
450
600
  Swing Over Carriage
mm
390
410
450
500
650
  Swing In Gap
mm
750
900
1000
1250
1300
  Main Spindle Bore
mm
53 To 80
70 To 80
90 To 100
100
100
  Main Spindle Tamper
MT
MT4
MT4
MT4
MT4
MT5
  No. Of Spindle Speeds
Nos.
18
18
18
18
18
  Speed Range
RPM
30 To 1200
25 To 500
15 To 450
15 To 450
10 To 300
  Cross Slide Travel
mm
300
350
400
450
500
  Top Slide Travel
mm
150
180
180
200
200
  Lead Screw Pitich
TPI
4
4
4
4
4
  Main Motor
HP
3
5
5
5
7.5
  Rapid Motor for Saddle
HP
2
2
2
2
2
  Collant Pump Motor
HP
.11kw
.11kw
.11kw
.11kw
.11kw
  *Modification on customer request.
  *Specifications are subject to change without notice.
