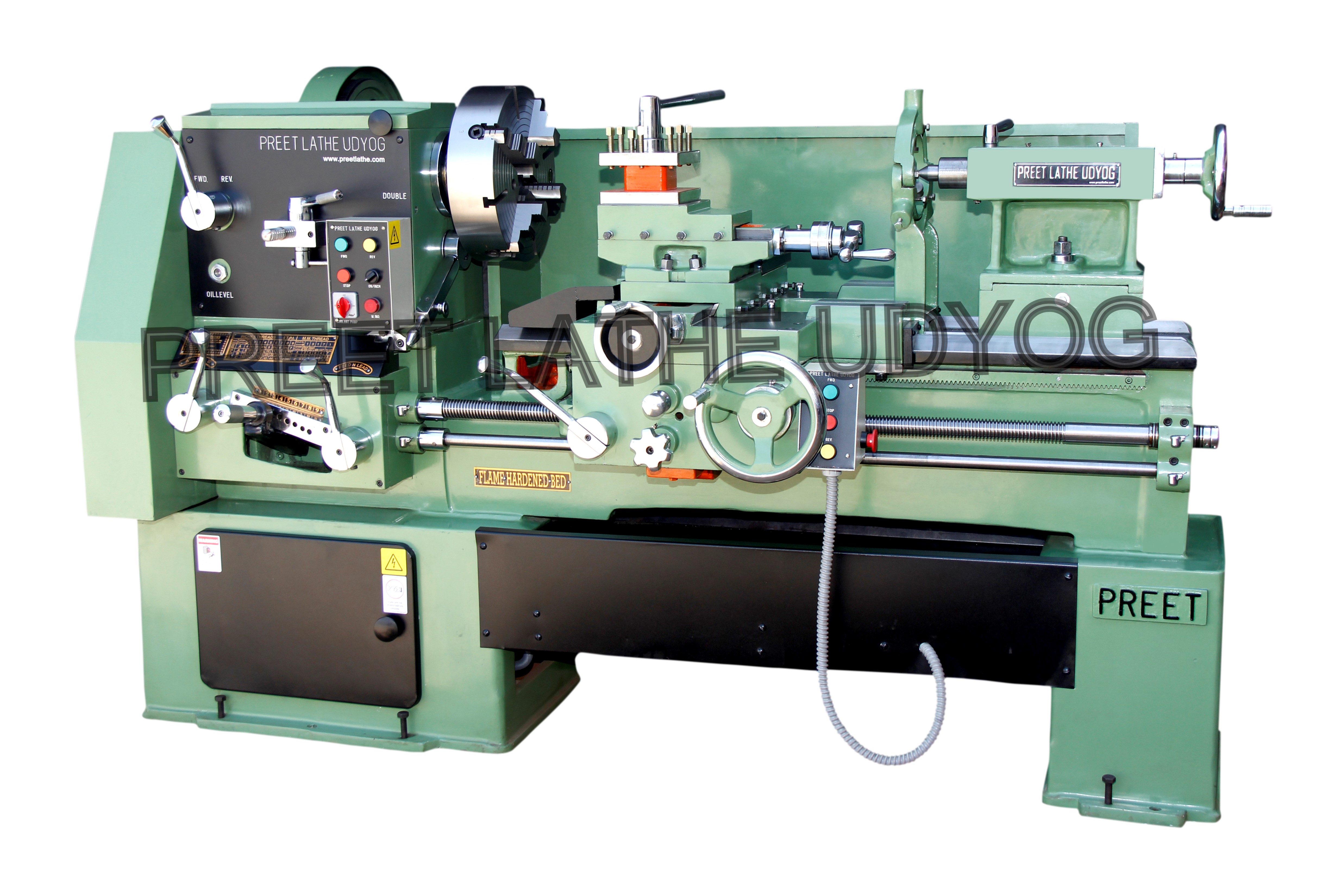

Since 1984, Our Company, Preet Lathe Udyog has engaged in manufacturing of Lathe Machine in Batala with the simplest design and Robust Building. Our Conventional Lathe Machine design assures defined performance, easy operation and high production. For constructive engineering, we use materials which are the selected ones. These machines are manufactured strictly on quality basis to give long trouble free service, thus guarantee a precision and economic working and cuts cost ultimately. Preet Lathe Udyog is involved in the Engineering of great performance Cone Pulley/ V- Belt Lathe Machine or Conventional Lathe Machine in Batala. Over 30 years, we are well-regarded Conventional Lathe Machine Manufacturer, Suppliers and Exporters of an Exhaustive Collection. The building of the Machine Series takes place by using Standard Grade Cast Iron & Steel that is obtained from the well-known vendors of the market.
Specifications | Conventional Cone Pulley Lathe Machine | |||||||
Description | Unit | A | B | C | D | E | F | G |
Distance Between Centers | mm | 500mm to 8000mm | ||||||
Bed Width | mm | 300 TO 375 | 430 | 450 | 500 | 600 | 700 | 800 |
Center Height | mm | 300 TO 330 | 360 | 380 | 450 | 500 | 600 | 700 |
Swing Over Bed | mm | 550 | 720 | 760 | 900 | 1000 | 1200 | 1400 |
Swing Over Cross Saddle | mm | 350 | 370 | 400 | 450 | 600 | 850 | 1000 |
Swing Over Carriage | mm | 390 | 410 | 450 | 500 | 650 | 900 | 1050 |
Swing In Gap | mm | 750 | 900 | 1000 | 1250 | 1300 | 1500 | 1700 |
Main Spindle Bore | mm | 53 To 80 | 70 To 80 | 90 To 100 | 100 | 100 | 100 | 100 |
Main Spindle Tamper | MT | MT4 | MT4 | MT4 | MT4 | MT5 | MT6 | MT6 |
No. Of Spindle Speeds | Nos. | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Cross Slide Travel | mm | 300 | 350 | 400 | 450 | 500 | 500 | 500 |
Top Slide Travel | mm | 150 | 180 | 180 | 200 | 200 | 200 | 200 |
Lead Screw Pitich | TPI | 2 or 4 | 2 | 2 | 2 | 2 | 2 | 2 |
Main Motor | HP | 3 | 5 | 5 | 5 | 7.5 | 10 | 15 |
Rapid Motor for Saddle | HP | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Coolant Pump Motor | KW | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
*Modification on customer request. | ||||||||
*Specifications are subject to change without notice. |
